Vacuum Sanitary Systems

A unique system created be dedicated people

System

The funtionality of the vacuum sanitary system

With the unique design flexibility, Jets™ Sani­tary Systems are suitable for a wide range of marine applications. Simple in-line installation, no need for tanks, small footprint and scope for tailor-made configurations make Jets™ the preferred solution for vessels – from fishing boats to cruise ships.

The funtionality of the vacuum sanitary system

Vacuumarator™

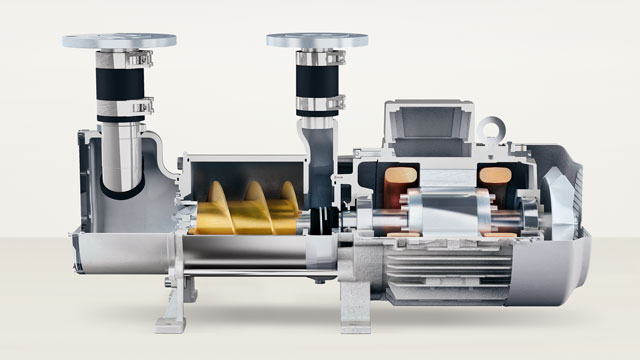

Photograph: Jets™ Vacuumarator™ cutaway view

Vacuumarators are the heart of every JETS™ vacuum sanitary system. They generate the vacuum and ensure reliable removal of the crushed solids into the intended tanks or into the sewer system through the integrated cutting unit.

Photograph: Jets™ Vacuumarator™ cutaway view

Compared to other systems, the energy-efficient JETS™ vacuum pumps are very small, compact and robust. They are made of high quality materials, their installation and maintenance is simple.

Latest Innovation: RagBox™

The RagBox™ – How it Works

Searching for blockages in the vacuum sanitary system and removing foreign bodies is unpleasant and time-consuming. The patented and unique new RagBox™ from Jets Vacuum AS was designed to significantly ease the process of removing foreign objects in vacuum sanitary systems.

The RagBox™ – How it Works

The RagBox™ can be installed in both new and existing systems and offers a descaling dosing unit connection.

Main Characteristics

  • Operation time reduced to seconds
  • Reduced smell
  • Very low risk of spillage
  • Easy access
  • Can be installed horizontally and vertically
  • Requires only 120 mm pipe length
  • Made from 100% recycled material

Vacuum Piping

Photograph: POLO-KAL NG Vacuum pipe
Source: Poloplast

Poloplast POLO-KAL NG Vacuum plastic piping in a nutshell: low weight, long-lasting, temperature resistant, high assembly security and flexibility, low price tag.

Photograph: POLO-KAL NG Vacuum pipe
Source: Poloplast

Poloplast Vacuum plastic piping offers a highly attractive alternative to conventional stainless steel piping. With up to 5 times less weight, it is nevertheless durable, temperature-resistant and resistant to chemical agents. In addition, it is less susceptible to contamination and is more flexible and safe to install. All this comes at a price that is up to 3 times lower.

Vacuum Toilets

The Jets™ vacuum toilets are characterised by their simple and safe design. All models are made of high-quality porcelain or stainless steel and comply with DIN 1717 (protection of drinking water).

All toilets are flushrimless and therefore more hygienic and easier to clean than conventional toilets. There are versions for every environment, be it luxury cabin, public toilet or engine room.

Grey Water Tanks

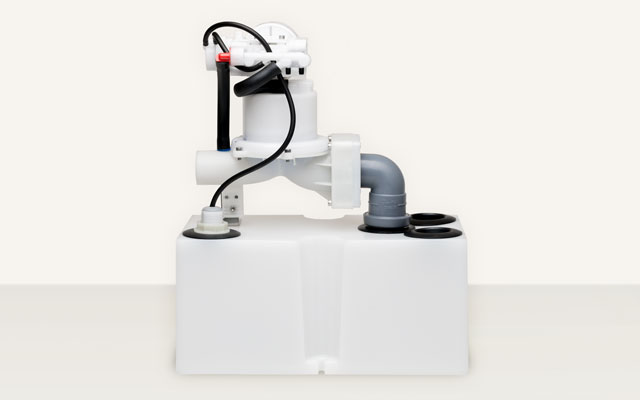

Photograph: Jets™ Grey Water Tank

Grey water tanks are the interface between the conventional drainage system and the JETS™ vacuum system. They are used to integrate washbasins, showers, fully automatic coffee machines, bakeries, cold stores, etc. and replace the failure-prone and maintenance-intensive pumps and lifting systems.

Photograph: Jets™ Grey Water Tank

JETS™ grey water tanks are available in sturdy lightweight plastic and heavy-duty stainless steel versions.
